Fitment Bikes:
Upgrade your e-moto with the Hawk31 MAX Front Fork and MAX Widened Triple Clamp Kit, engineered for riders who demand precision, stability, and Proper control. Built for serious performance on electric motos like the Surron Light Bee, Talaria Sting, and E-Ride Pro, this system delivers a premium combination of strength, adjustability, and fine-tuned handling that transforms your ride from front to back.
The MAX widened triple clamp kit includes upper and lower clamps, a CNC-machined steering stem, raised flange, widened front axle kit, and all required hardware. Each component is CNC-machined from high-strength 7075-T6 aluminum, providing superior rigidity with minimal weight and a precision fit that ensures long-term durability under aggressive riding conditions.

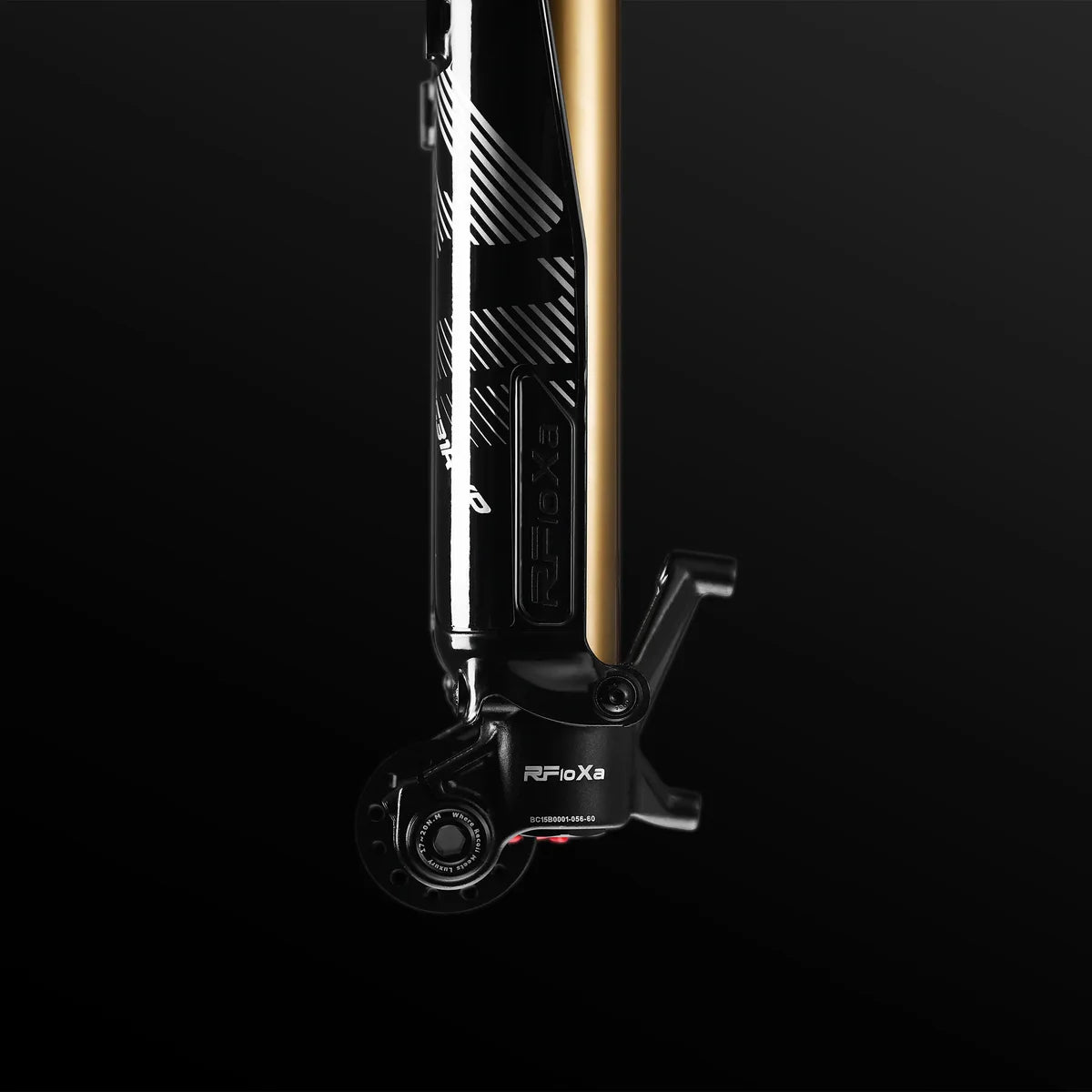

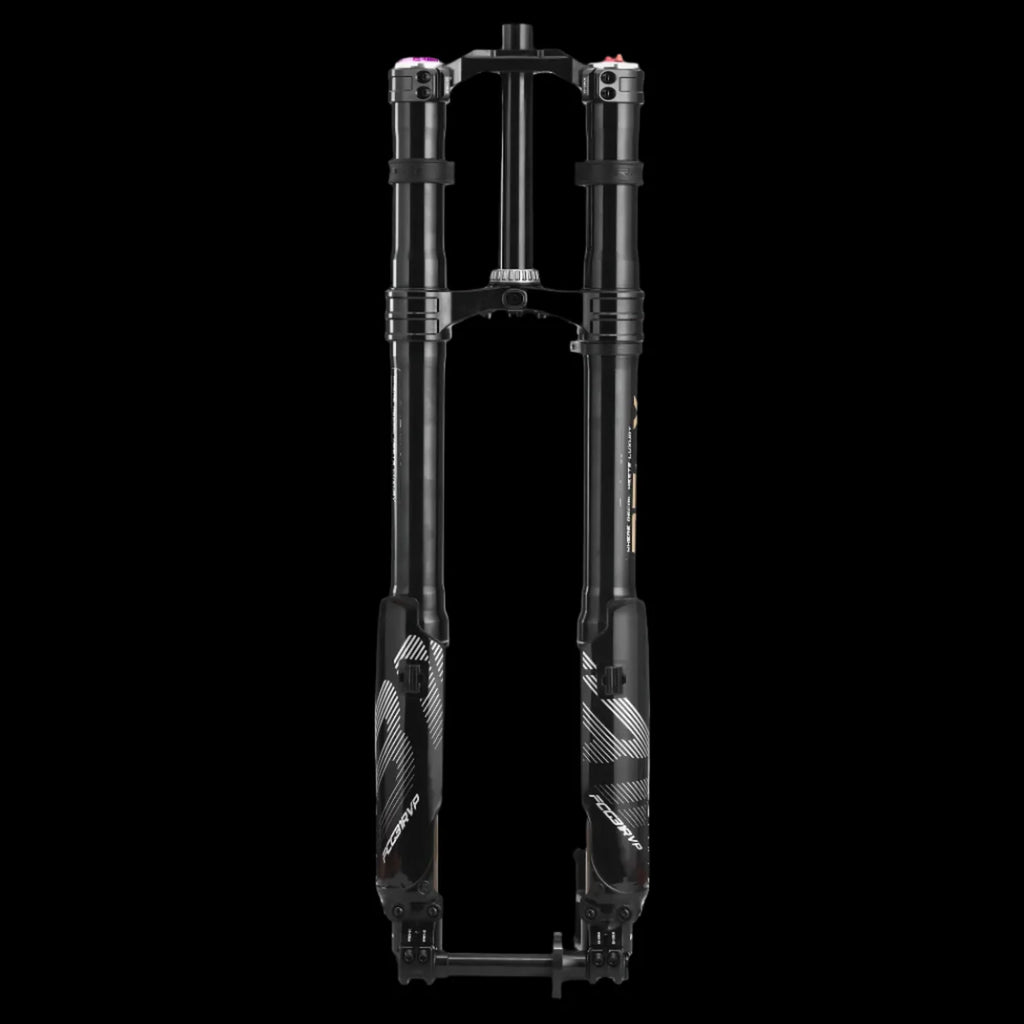

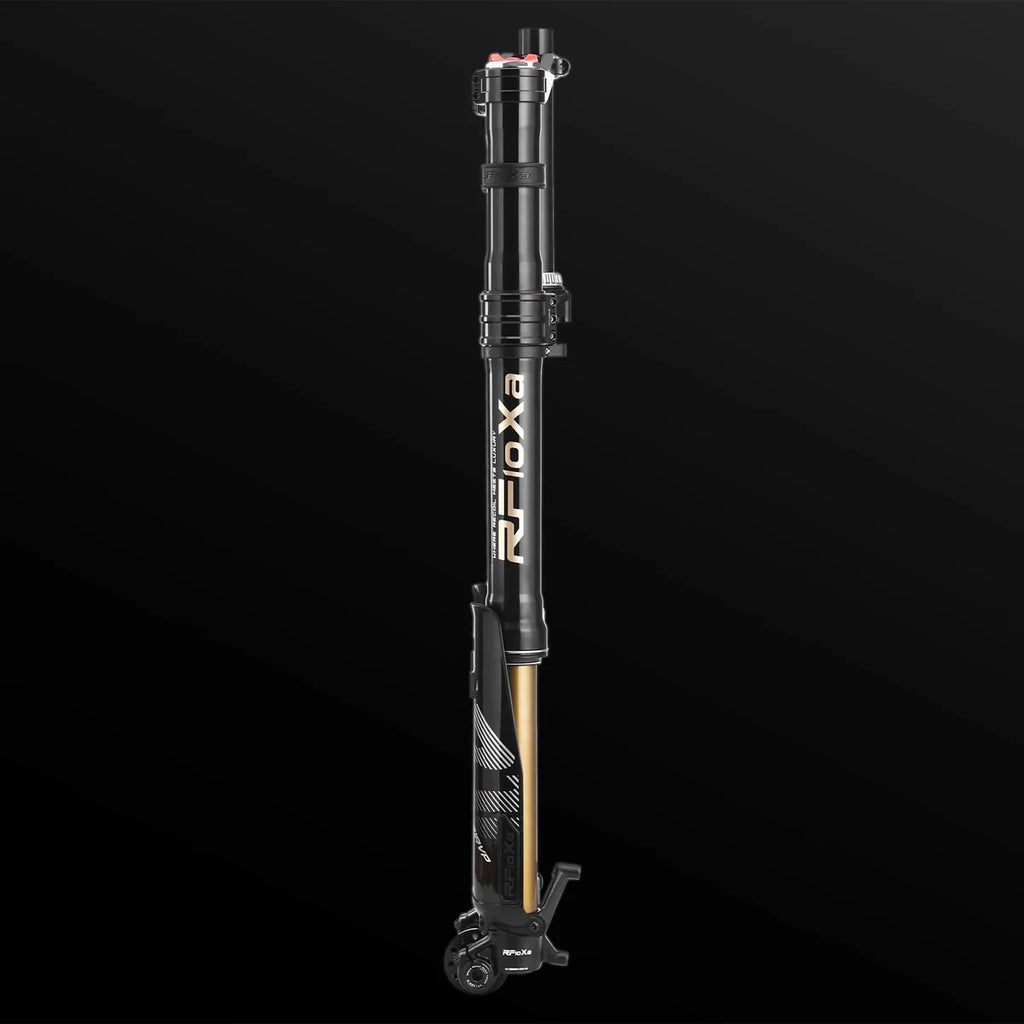

The Hawk31 MAX inverted fork brings serious suspension performance with 203–228mm of travel, 37mm stanchions, and 74mm caliper spacing, built for 203mm or 220mm disc brakes. The inverted oil-spring damping system uses an independent left and right leg design and offers multi-stage adjustability for high-speed compression, low-speed compression, rebound, and spring preload — all easily controlled by manual knobs for quick, precise tuning. Built from AL6061-T6 forged aluminum for the lower brackets and AL7075-T6 alloy for the fork tubes, plus 55CRSI spring wire, this fork is designed to perform under pressure. The oil-pressure bottom-out system provides added support on hard hits, while dual compression valve plates and low-friction, cold-resistant shock oil ensure smooth, stable damping in all conditions.
Special Note:
Our wider drop crown triple clamp kit data is based on Talaria Sting MX3 / MX4 /, Sur-Ron Light Bee, and E-Ride Pro product data. Non-standard or modified front wheel cores that differ from factory geometry may not fit perfectly. For best results and alignment accuracy, use with OEM or Warp 9 verified wheel cores.
Features:
-
Center Distance: 750–800mm
-
Main Piston Travel: 203–228mm
-
Tube Diameter: Ø37mm
-
Caliper Mount Spacing: 74mm
-
Disc Brake Size: Ø203mm (Upgradeable to Ø220mm)
-
Suitable For: Electric Dirt Bikes, Downhill Bikes
-
Damping System: Inverted Oil-Spring
-

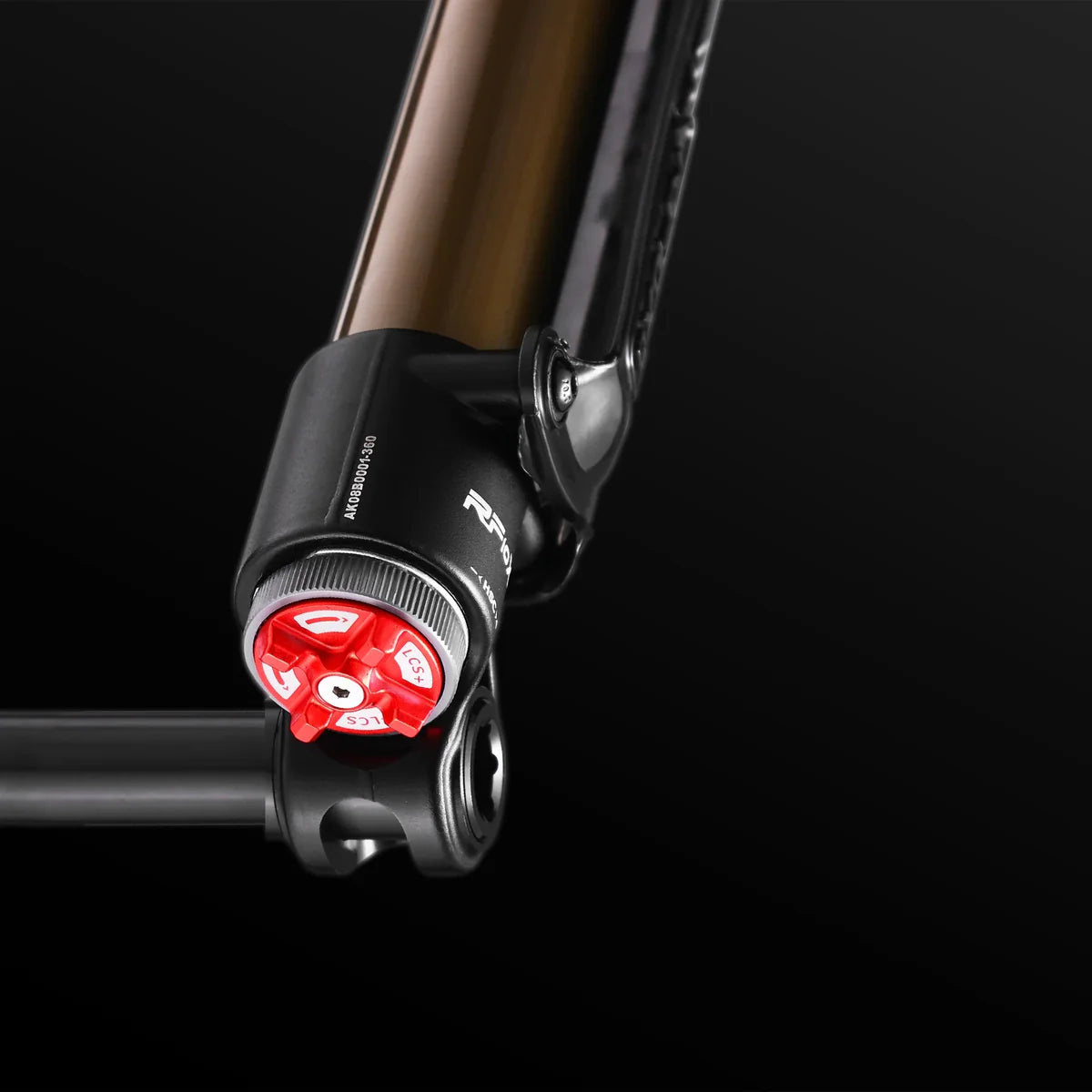

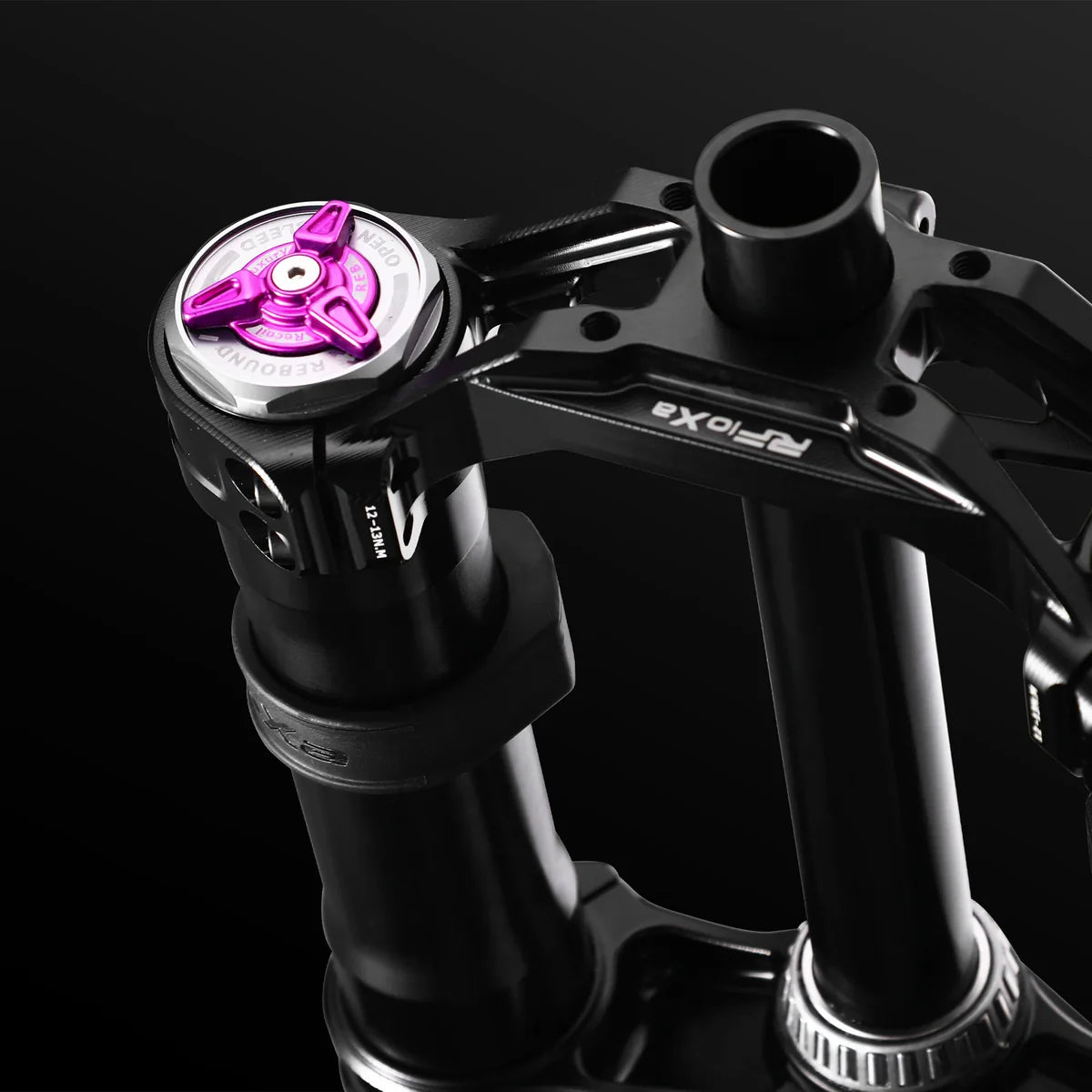

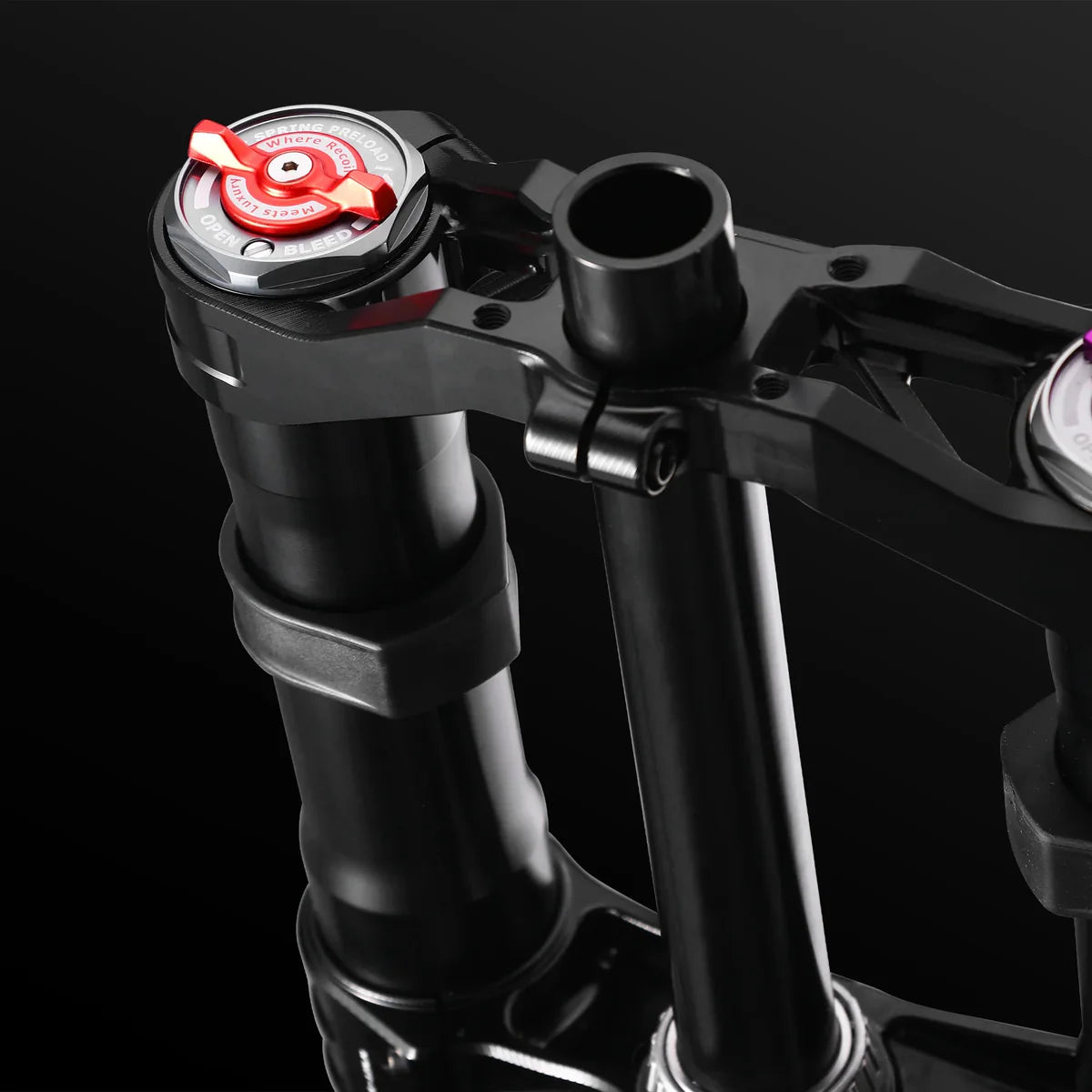

Adjustments: Multi-Stage High-Speed Compression, Low-Speed Compression, Rebound, Spring Preload
-
Material: AL6061-T6 Forged Aluminum Alloy Bottom Brackets, AL7075-T6 Aluminum Fork Tubes
-
Spring Wire: 55CRSI
-
MAX Triple Clamp: CNC Precision Machined
Built for serious riders and Proper performance, the Hawk31 MAX Fork + Triple Clamp Kit gives your front end the stability, adjustability, and craftsmanship needed to handle any terrain — finished in Proper Emoto Co style.
